三、Drive Head for PC Pump

　　1、Drive head is drived by different ways such as electromechanical drive ,liguid prdssure and internal-combustion engine and so on .We are mainly specialized in producing Drive Head by electronechanical trive .It is simple ,reliable and easy to repair .We also would like to design and produce Drive Head dtived by liguid pressure or internal-combustion engine as per customer requirements.

　　

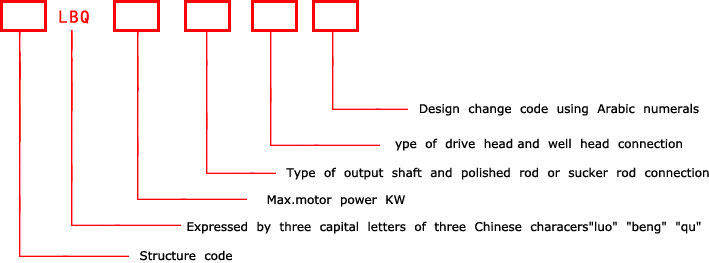

2、Model lllustration：

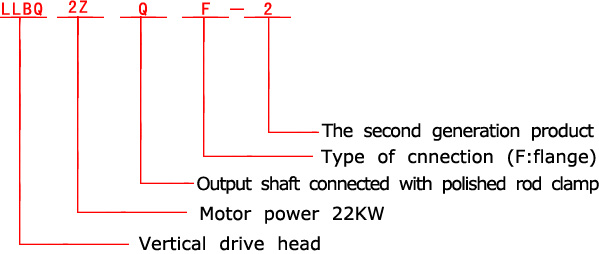

Example:


３Data Table for Drive Head

Model LLBQ7.5 LLBQ11 LLBQ15 LLBQ22 LLBQ30 LLBQ37
Motor power KW 7.5 11 15 22 22-30 30-37
Speed range 64-157 64-157 64-157 110-240 110-240 110-240
Connection Special D250 well head
Polished rod GGD28 GGD28 GGD28 GGD28 36空心杆 36空心杆
Weight
Axial load KN 110 110 110 110 110 145
Matched pump

GLB40-20
GLB75-16

 GLB28-40
GLB75-27		 GLB75-40
GLB40-42
GLB120-27		 GLB190-33
GLB300-21		 GLB500-14 GLB800-16
